The Low Expansion Foam Branches combine superior throw with the ability to produce good quality, cohesive foam. Available with nominal foam solution capacity of 225 (FB 5X)and 450 lpm (FB 10X)at 7 bars pressure. It is recommended to use Foam Branches with matching  Inline Inductors only.

Construction : Aluminum and SS 304 versions available. 2.5” Instantaneous G.M. Male Inlet.

Low Expansion Jet /Spray type Foam Branches give the operator the option of projecting foam in the form of a jet (to tackle fires from a distance) or Spray (for quick coverage of spills, etc). Ideal for use with AFFF in aircraft crash situations and areas where flammable liquid spill occurrences are likely. Available with nominal foam solution capacity of 450 lpm (FB 10X JS) at 7 bars pressure.

Construction :. Aluminum & SS 304 versions available. 2.5” Instantaneous G.M. Male Inlet

Medium Expansion Foam Branches produce stable, superior quality medium expansion foam, suitable for quick coverage of spills, tackling spill fires, fires in tank dikes, drains, etc. Suitable for use with standard AFFF, FFFP and High expansion Foam compounds. Available with nominal foam solution capacity of 225 (MX 225)and 450 lpm (MX 450), the MX Branches are matched to Inline Inductors of abovementioned capacities.

Construction : SS 304 shell with G.M. nozzle. 2.5” Instantaneous G.M. Male Inlet.

Medium Expansion Foam pourers ‘pour’ the foam onto the risk area, and are ideal for tackling large flammable liquid spills, and fires in Tank dikes. Can be used with AFFF, FFFP and High expansion Foam compounds. Available with nominal foam solution capacity of 600 (MXP 600), 1100 (MXP 1100) and 1600 lpm (MXP 1600). The 600 lpm version (MXP 600) can be easily carried on Foam Tenders as part of standard equipment, and can be operated directly from the Tender. Inline Inductors matching to above Pourers available.

Construction :. SS 304 body, shell and supports, with G.M. nozzles. 2.5” Instantaneous G.M. Male Inlet (4” Inlet for MXP1600)

The Portable High Expansion Foam Generator ( HX MINI Super) is a first aid HX Foam Generator, meant to be carried Fire Tenders, and is useful for applications such as flooding of basements, cable ducts, cargo holds, and other marine and mining applications. When operated at optimum pressure, the HX MINI Super typically generates HX foam of expansion between 1:250 to 1: 350, using standard High Expansion Foam compound. It can be normally operated using the 225 lpm capacity Inline Inductor. It can also be used for smoke extraction using reinforced ducting. When being used for smoke extraction, the Inline Inductor and foam making flexible net should not be used.

Construction: SS 304 body, shell, pelton wheel, Aluminium/ SS304 fan blades. G.M. nozzles, 2.5” Instantaneous SS 304/ G.M. Male Inlet.

Inline Inductors provide means for accurate induction of Foam compound into the Water stream for operation of Foam branches and equipment. These Inductors are matched to Foam equipment. Available in Aluminium and G.M. options, the Inline Inductors are designed for 3% or 6% induction, the inductors are available with nominal foam solution capacity of 225 and 450 lpm, as well as tailor-made to client requirements. Variable options also available.

Construction: Aluminium Body and supports (G.M. for G.M. version), 2.5” Instantaneous G.M. Male Inlet and Female Outlet. 1 Mtr. long PVC braided Pick-up tube & SS 304 Dip Pipe.

* - pressure at outlet of Inline Inductor Weight of Gunmetal version - 8.5 kgs.

LX Mechanical Foam Generators (MFGs) give excellent quality low expansion foam, and are used as portable equipment, mounted on Fire fighting Vehicles, or in fixed foam systems. MFGs induct the required amount of foam compound, and air into the foam solution stream to give stable LX foam.MFGs are available with nominal foam solution capacity of 225 (MFG 5)and 450 lpm (MFG 10) It is recommended to operate the MFGs at a minimum pressure of 7 bars, maximum 12 bars.

Construction: Aluminium Barrel, G.M. inductor assembly, 2.5” Instantaneous G.M. Male Inlet, G.M. Female Outlet.

MFGs supplied with 1 Mtr. long PVC braided Pick-up tube and SS 304 Dip Pipe.

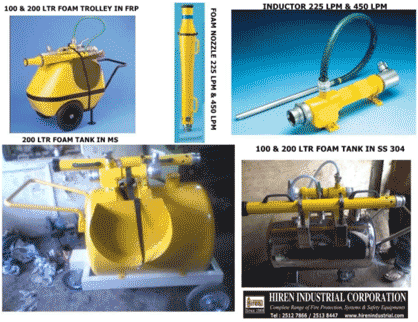

Mobile Foam Trolley Unit (MFT 100) is an ideal solution for quick mobilisation and application of foam for tackling flammable liquid fires and spills, such as in Oil Depots, Petrochemical complexes, etc. The sturdy FRP body has a capacity to hold 100 ltrs. of foam compound, which allows more than 7 minutes of continuous application using the  FB 10X (450 lpm capacity) foam branch or almost 15 minutes using the FB 5X (225 lpm capacity )foam branch i.e. over 32000 ltrs. of finished foam.

The Mobile foam Trolley design, with its large solid tyres ensures easy maneuverability, at the same time proper mounting of equipment (including Inductor, Foam branch and 2 lengths of 15 mtr. hoses) means easy removal of Foam branch and hoses for quick deployment. Higher capacity models (upto 200 Ltrs capacity) in FRP/ SS304, and tailor-made to client requirements available on request.

Construction : Corrosion resistant FRP tank, M.S./SS304 Chassis frame, SS304 Hose Basket, Solid Polymer tyres.
