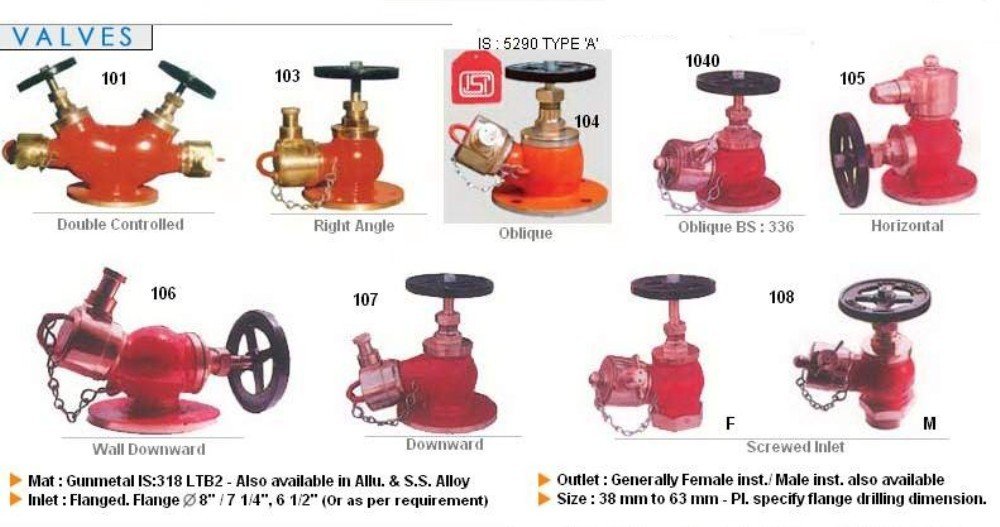

Fire Hydrants Valves
63mm Oblique Type Fire Hydrant Valve
Optimized for High-Pressure Performance
Our 63mm Oblique (or Sloping) Type Landing Valves are the standard solution for high-rise buildings, industrial parks, and municipal water delivery.
Key Technical Specifications:
- Standards: ISI Marked, Conforming strictly to IS 5290 Type 'A' standard.
- Size: 63mm Nominal Bore (NB) Inlet.
- Outlet: 63mm Female Instantaneous outlet (conforming to IS 903) for swift connection of fire hoses.
- Material: SS 304 or highly corrosion-resistant Gunmetal (IS 318 LTB-2).
- Performance: Features a seamless internal water passage with excellent friction-loss reduction for maximum flow and pressure delivery.

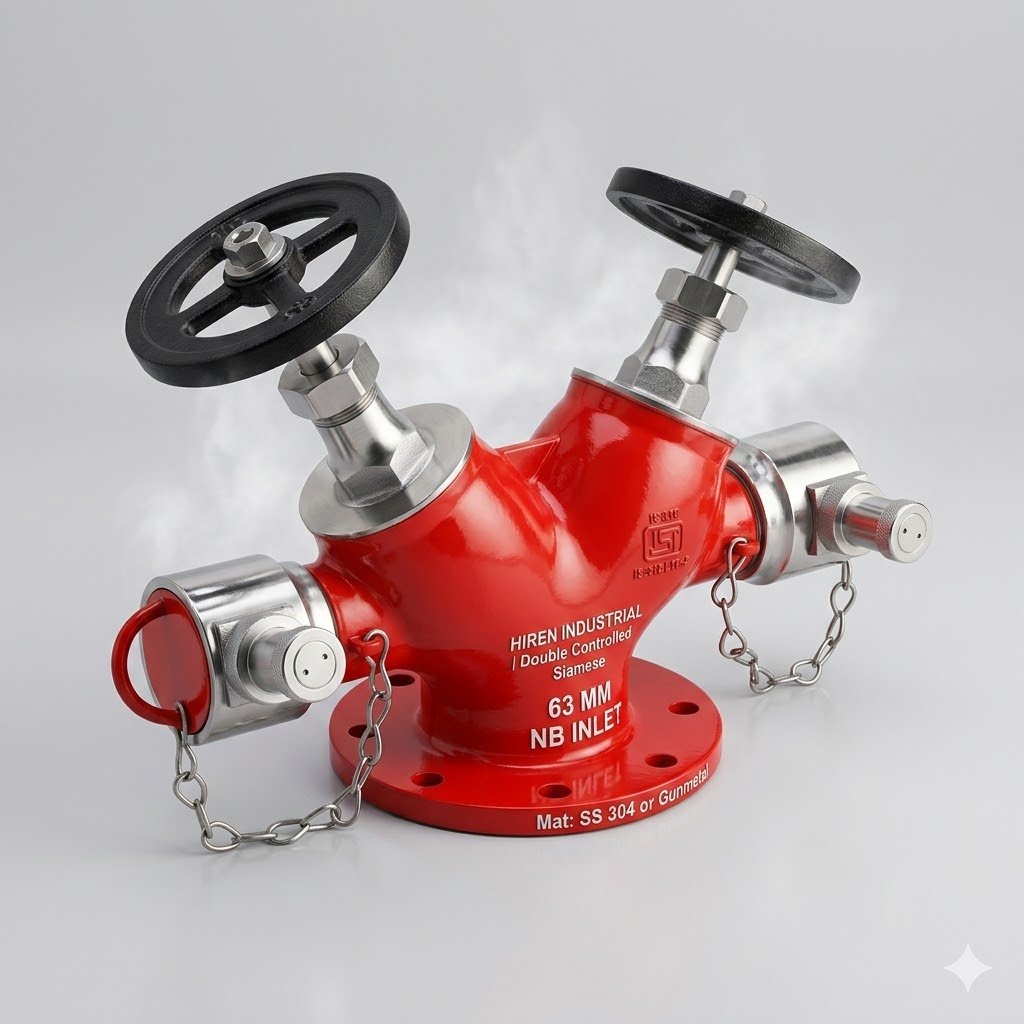

63mm Double Control Fire Hydrant Valve
Double the Deployment, Maximum Defense
For critical infrastructure demanding redundant flow or simultaneous deployment by two firefighting teams, our 63mm Double Control Fire Hydrant Valve is the ultimate solution.
Key Technical Specifications:
- Standards: ISI Marked, Conforming to IS 5290.
- Inlet: Features a single, large 63mm (2 ½ inch) flanged inlet
- Dual Outlets: Splits into two independent outlets, each with its own 63mm (2 ½ inch) Female Instantaneous outlet and an independent, hand wheel-operated control mechanism.
- Independent Operation: Both outlets can be operated simultaneously or independently, providing precise control over water distribution to two separate fire hoses.
- Corrosion Resistance: Finished with high-quality 'Hiren Red' powder coating on all external surfaces, protecting against UV and environmental degradation. Polished Stainless Steel or Gunmetal for all internal and coupling components.
